Technical Data

Application

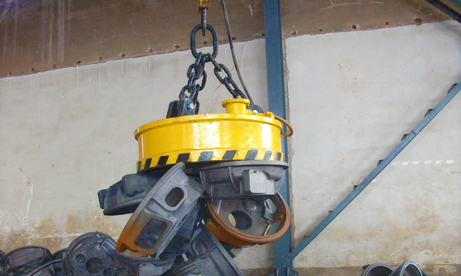

Crane electromagnets are often used in coal preparation, coal transportation in power plants, metallurgy and iron, metal mines, cement and building materials, petrochemical industry, shipbuilding, port transportation, brick and tile ceramics, glass, paper-making, grain, oil and food, railway logistics and other industries.

Features

• 1
  Fully sealed structure, good moisture resistance.
• 2
  Independent structure, easy to install, operate and maintain.
• 3
  Each crane electromagnet has been optimized by computer with reasonable structure, light weight, large suction and low energy consumption.
• 4
  The electrical and mechanical properties of the coil are improved by special process treatment. The heat resistance grade of the insulation material reaches grade C and the service life is long.
• 5
  The high temperature electromagnet adopts a unique heat insulation method, and the temperature of the absorbed material is increased from 600 ℃ to 680 ℃, which extends the application range of the electromagnet.
• 6
  The rated power on duration of ordinary electromagnet can reach 60%, and the application effect is higher.

Custom

Because there are many kinds of steel, their shape, size, weight and bulk density are different, so the design of electromagnet magnetic circuit should be different. If the electromagnet suction is mainly a kind of scrap steel, Dejun can customize the production according to the specific working conditions to solve the problems in material handling.

Mw03 series crane electromagnet for slab lifting

this series of products are specially designed according to the characteristics of large permeability of the whole steel plate, with the characteristics of light weight and large suction. It is used for lifting large ingot, continuous casting slab and thick steel plate. In order to avoid inclination caused by eccentricity, two sets of combined cranes can be used when lifting slabs more than 6m.

Crane electromagnets for mw17 mw27 mw37 series of lifting rails

Mw17 series electromagnet uses unique "shop extension" magnetic circuit and double wire package structure, which has good heat dissipation and deep magnetic permeability. It can lift heavy rail, section steel and special-shaped blank. There are normal temperature type and high temperature type. Two or more combined cranes are used.

Mw19 series crane electromagnet for high-speed wire rod

Mw19 is specially used for hoisting coil. Because of its light weight and reasonable structure (only two points in contact with the disk circle), it has replaced the original mw22 -? 54 series. The magnetic pole structure of this series of electromagnets can adapt to different diameter circles. The selection of electromagnet depends on the length of the coil. It can lift multiple bundles of coils along the length direction of the electromagnet, or lift multiple bundles along the width direction. It can provide multiple sets of simultaneous operation, and can be connected and disconnected separately to facilitate loading operation.

Crane electromagnet for mw18, mw38 series of crane electromagnet for lifting bar

using unique "∧" type magnetic circuit, the crane electromagnet is double wrapped structure, which has good heat dissipation, deep magnetic permeability, and can penetrate multi-layer air gap. It can lift the bar, flat iron, angle steel, etc. which are not bundled or simply tied. There are normal temperature type and high temperature type. Due to the use of two or more cranes, the structure of two or four lifting points is often used to connect the hanging beam. All the listed structures are of two lifting points. Please specify the specific requirements for connection with hanging beam when ordering. Due to the large deflection of round steel, screw steel and other types, it is recommended to use multiple combined cranes when the length of the absorbed object exceeds 9 meters.

Mw22 series crane electromagnets for lifting profiles and billets

mw22, mw32, mw42 series crane electromagnets for billet. Mw22 series is the most widely used rectangular electromagnet, which is mainly used for lifting square billet, large ingot and large bloom, and also for lifting round billet and section steel. For different types of steel, different magnetic circuit design is adopted. It can produce a large magnetic permeability in a narrow adsorption area. It does not need to adjust the suction according to the deformation or distortion of the lifting parts. It can lift the steel with a certain gap. The steel with uneven height can also produce strong magnetic force to absorb and lift safely.

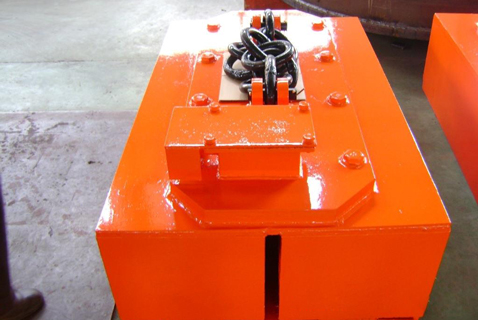

Crane electromagnet for mw25 pipe billet and steel pipe lifting

where is the best crane electromagnet for lifting pipe blank and steel pipe? Hunan Qianhao Electromechanical Technology Development Co., Ltd. supplies high-quality crane electromagnet for mw25 pipe billet and steel pipe lifting. This series is a widely used rectangular electromagnet, which is mainly used for lifting round billet, steel pipe, etc. it can also be used for lifting square billet, steel ingot, large bloom, section steel, etc.

crane electromagnet for lifting steel plate

mw84 crane electromagnet for lifting steel plate is specially designed for lifting medium and heavy steel plate. Lifting operation is safe, accurate and rapid. Considering that the long steel plate may be bent and deformed, which may affect the safe handling, when lifting the long steel plate, please use multiple electromagnets. For medium and heavy plate (6 mm ~ 32 mm), the distance between electromagnets should be 3 ~ 4 meters, and the length of the extension part at both ends can be taken as half of the distance. According to the number of lifting pieces, it can be divided into 350 type and 400 type. Model 350 is suitable for medium and heavy plate factories, shipyards and machinery factories. It can lift one or a certain number of steel plates by magnetic field adjustment control. Model 400 is suitable for handling as many pieces as possible at one time. According to the requirements of users, it can design and manufacture high-temperature products for lifting steel plates below 700 ℃.

Mw61 scrap steel crane electromagnet

mw61 scrap steel crane electromagnet series is used to load and unload scrap iron and steel efficiently in narrow container. According to the shape of the car body, the electromagnet is usually designed to be a semicircular structure at both ends, so it is also called elliptical electromagnet.
