Application

European electric wire rope hoist usually used in industry of machinery production, assembling, petrochemicals, warehouse logistics, electric power construction, papermaking and railways.

Features

• 1
  Special Compact Low Headroom Configuration
  With modularized structural design, optimized force distribution, high quality material and reducing the affiliates, it enables us to minimized the dimension and make it more compact. Meantime the biggest approaching dimension and light dead weight can reduce at least 1000mm on the workshop height. Therefore it reduces client’s investment on the workshop structure and foundation, and then reduces the maintenance cost on the heating system and ventilation system.
• 2
  Dual Speed & Inverter Speed Control
  The application of dual speed and inverter speed control on hoisting and traveling control system makes the speed comform to the command of operator, and makes the transferring of high speed and low speed smooth and precise. Fast and precise positioning highly improves the safety of process, makes work smooth and efficient, and then bring high performance and productive capacity.
• 3
  Electric Control Box
  Schneider, Siemens and other international famous electric components, with concise and reasonable wiring, multiple protections, IP64 protection level, no noise, stable performance, the cover can be opened in 120 degree and easy to maintenance.
• 4
  Lifting Driver Unit
  High strength aluminum alloy integration housing, light weight, small volume, good heat conduction, free from maintenance design. Class H insulation, IP65 protection level(special configuration requires special explanation).
• 5
  Operation Mechanism
  Motor, reducer and brake are integrated into one body, so its structure is compact. Speed adjusts by frequency conversion, so its operation is smooth, stable and free from impact,maintenance and design. It is of class H insulation at IP65 protection level(for special configuration, explanation shall be required.)
• 6
  Brake
  Agility operation, stable performance, little abrasion and long service life, one million switch for the first warranty. Two sides non asbestos brake pad(optional critical abrasion indication function.)
• 7
  Rope Guide
  It is made of high strength, wear-resistant, self-lubrication engineer used nylon, so its weight is light, and volume is small and it effectively extends the service life of roll and steel wire rope.
• 8
  Connector
  Aircraft-grade connector, the contact is extremely stable, no false connection, above IP65 protection level.
• 9
  Hoisting Height Limiter
  Double limits, free adjustment, multi-point control, broad regulation range, high limits accuracy, therefore it has the same service life as crane.
• 10
  Safety Monitor(Optional)
  Digitized real time monitor, automatic alarm recording, humanity operation interface.

Custom

European electric wire rope hoists are designed and manufactured according to international standards, or special local standard according to client special requirement, then it can meet different requirements from global market and get wide range of accreditation. It can bring more quality service for global clients and win the trust and support from them.

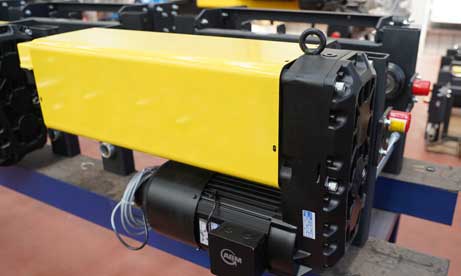

European Electric Wire Rope Hoist (for single girder crane)

Lifting capacity: 1~20t This European wire rope hoist has more and faster hoist speed and various pulley ratio which can be selected, light weight, small space use, low cost of maintaining and high performance. The installation of hoist and main girder adopted screws pith adjustment enable the dimension of hoist and main girder is more accurate and convenience. The small gap of hoist and main girder that greatly increase the lifting space and save the material space.

European Electric Wire Rope Hoist (for double girder crane)

Lifting capacity: 20~80t The traveling is driven by inverter which can make the start-up, operation and stop stable and free from impact, lifting is driven by dual-speed(also can choose inverter drive) that can realize material transportation, unloading and assembly better. The trolley is highly standardized, small in size, easy to install, and stable in performance.
