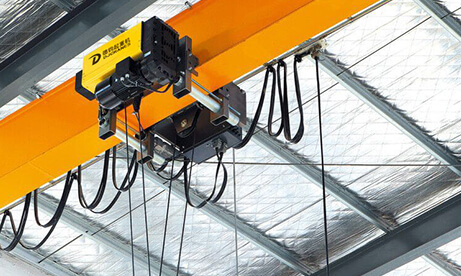

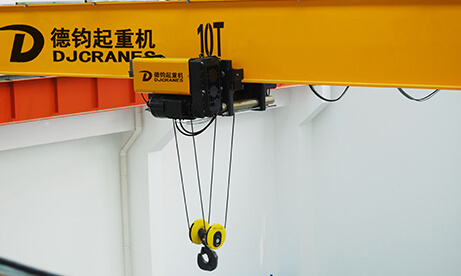

European Type Single Girder Overhead Crane

Type HD
Capacity 1 tons-25 tons (customized)
Span 3m- 35m(customized)
Applications The lifting weight ranges from 1 ton to 25 ton. HD type European crane can be designed non-standard according to different needs of users. The product are widly uesd in metallurgy,paper making,automible manufacturing,wharf and other fields.The lifting unit can be electric wire rope hoist and electric chain hoist.
Send Email Inquiry Now
Introduction Technical Data Application Features Custom Inquiry

Product Introduction

European type single girder overhead cranes are manufactured using FEM and DIN design standards, and have become a new type of energy-saving and environmentally-friendly lifting equipment with its outstanding durability and high-quality cost-effectiveness. His lifting range is 3.2ton to 20ton, widely used in dust-free workshops, automobile manufacturing, packaging and spraying industries, bioengineering, food industries and hazardous environments.

European type single girder overhead crane drawing

Technical Data

HD Series European Type Single Girder Overhead Crane
Working Class A5-A7
Capacity t 1~25
Span m 3~35
Lifting Height m 3-100
Lifting Speed m/min 0.8/5,dual speed
Trolley Travelling Speed m/min 3~30,VFD control
Crane Travelling Speed m/min 3~30,VFD control
Control Method Ground or Cab Control
Power Supply 380V 50HZ 3PHASE or Customized
Temperature ℃ -20~60
Protection Grade IP54~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

Application

European type single girder overhead crane is suitable for automotive parts manufacturing, small piece lifting, biological engineering, medical equipment, food industry, chemical industry, explosion protection and corrosion environment.

Features

  • 1
    Excellent durability, high-quality price-performance ratio.
  • 2
    Modular design, compact structure, stable operation, precise positioning, maximum lifting capacity 20 ton.
  • 3
    Small size, light weight, small wheel load, best use of space.
  • 4
    Widly adjustable work scale, precisely positioning.
  • 5
    Smooth operation, beautiful appearance, patented products. Meanwhile the european type single girder overhead crane has high stability and accuracy to meet the requirements of auomated production line and high positioning accuracy.
  • 6
    The crane is simply constructed by girder,end carraiges,hoisting unitand electrical control.The design is based on the principle of maximum functions with minimum component untis and free maintenance.
  • 7
    The main beam of the crane effectively solves the swing problem of the hoist operation, with low noise and high safety. At the same time, the lifting space occupied by the crane is reduced, and the working space of the crane is increased.
  • 8
    End carraiges adopts rectanglar pipe with high mechanical property and high quality which is welded standardly and automatically.
  • 9
    European type overhead crane's long travel speed is controlled by inverter, travel stably with no impact.
  • 10
    Hoisting unit's cross travel is driven by inverter,lifting is driven by dual-speed(or inverter drive), that can realize material transportation,unloading and assembly better.
  • 11
    The small gap of hoist and main girder that greatly increase the lifting space and save material space.
  • 12
    As per control unit, main electric element adopts international well-known brands like Schneider,Siemens,ABB,ABM and so on.
  • 13
    Control method consists of pendant control, cabin control and wireless remote control, and also can be used in conbination.
