Technical Data

Application

The crane pendant control (button switch) is used in the circuit control system of 50 Hz or 60 Hz, rated voltage below 500 in the open air, rain, snow, dust, such as crane, electric hoist and other equipment control.

Features

• 1
  Beautiful appearance and reasonable structure.
• 2
  High mechanical strength, collision resistance, emergency stop switch and mechanical interlock, safe and reliable.
• 3
  The contact has large capacity and long service life.
• 4
  One hand support operation, light and convenient.
• 5
  The shell is made of ABS plastic.
• 6
  The button head adopts direction indication or letter mark, which is not easy to wear.
• 7
  The contact is made of standard silver or copper contact with good conductivity.
• 8
  The emergency stop switch should be reset after rotation or finger movement, and the operation button is automatic reset.

Custom

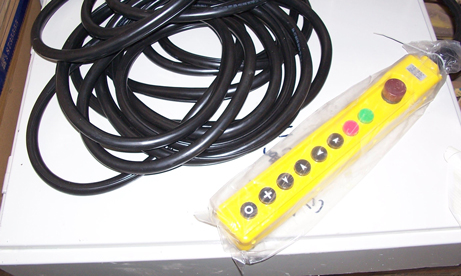

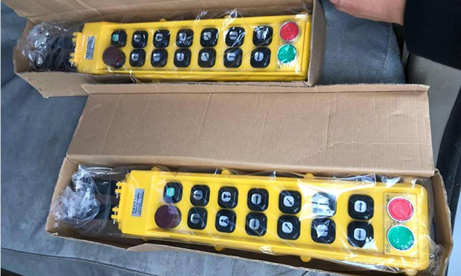

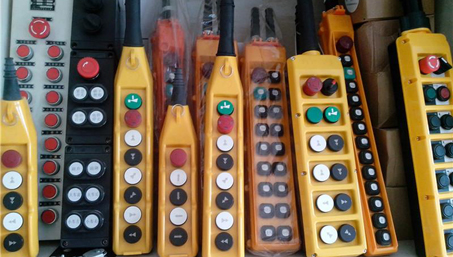

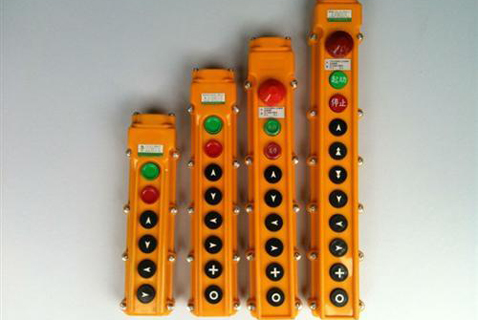

Crane Pendant control

1) It is suitable for indoor and outdoor environment
2) Ambient air temperature: - 5 ℃ to + 40 ℃, with an average of + 35 ℃ within 24 hours
3) Altitude: no more than 2000m
4) Pollution level: 3
5) Installation category: Class II
6) There is no obvious shaking, shock vibration, rain and snow intrusion, no explosion hazardous medium, and there is no gas and dust in the medium which is enough to corrode metal and damage insulation

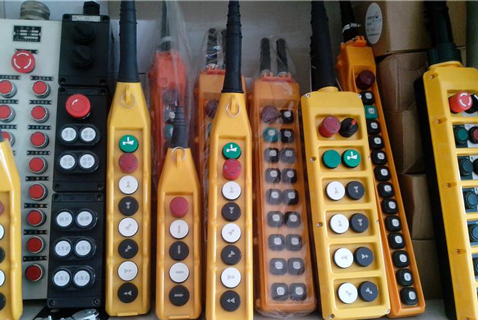

Single speed and double speed Pendant

1) A variety of design styles to meet personalized needs
2) It is made of impact resistant ABS material, and the button head is made of synthetic rubber with excellent performance, which is not easy to wear
3) Single speed and double speed function operation, large contact capacity, shock resistance up to 100g, long service life
4) Operating temperature: - 15 ℃ to + 70 ℃
5) The contact is made of standard silver contact with good conductivity. The emergency stop switch should be reset after rotation or finger movement, and the operation button is automatic reset
6) It is suitable for indoor or outdoor use. When it is used outdoors, tube bundle should be used to fix the bushing and control cable of wire control switch

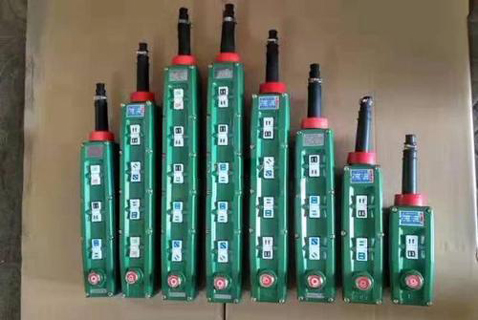

Explosion proof Pendant

1) 4, 6, 8, 12 keys, used for explosion-proof electric hoist and explosion-proof crane.
2) It is suitable for explosive gas environment and combustible gas.
3) Working environment: - 25 ℃ to + 40 ℃, relative humidity of environmental medium > 85%, altitude no more than 2000m.
4) The composite structure is adopted, and the explosion-proof components are installed inside
5) The shell is made of high-strength aluminum alloy by one-time pressing.

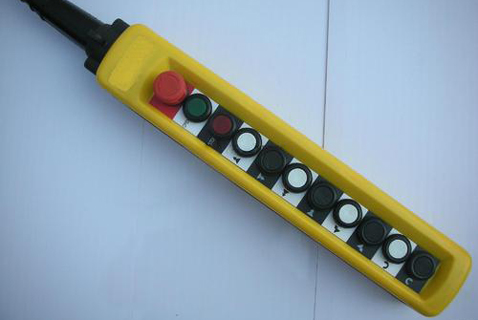

XAC Pendant

Upgrade the control switch of international chain type double speed electric hoist. It has the advantages of tight and beautiful appearance, light handle, mechanical interlock of positive and negative (normal descent) buttons, automatic reset, retraction button as emergency protection, safer and more reliable operation. With IP65 waterproof and dustproof grade, it is suitable for rain, snow, dust and other harsh environment. It can be used with a variety of single speed and double speed electric hoists.
